Fast Model Resin (Form 4)
- Print Technology
- SLA
- Colors
- Grey
- Compatible Printer
- Form 4B, Form 4BL
- Applications
- Orthodontic Models
- Ultimate Tensile Strength
- 62.0 MPa
- Elongation at Break
- 11.0 %
- Flexural Strength
- 106.0 MPa
- Notched Izod
- 37.0 J/m
- Heat Deflection Temp. @ 1.8 MPa
- 61.0 °C
- Heat Deflection Temp. @ 0.45 MPa
- 76.0 °C
- Flexural Modulus
- 2740.0 MPa
- Tensile Modulus
- 2670.0 MPa
Fast Model Resin is Formlabs’ fastest resin that is ideal for 3D printing dental models and orthodontic models for thermoforming clear aligners and retainers. Print 11 models on Form 4B in only 9 minutes or 32 models on Form 4BL in 14 minutes.
Fast Model Resin is the next generation of Draft Resin that leverages the Form 4 Series to print three times faster, while offering improved mechanical properties.
- Print Technology
- SLA
- Colors
- Grey
- Compatible Printer
- Form 4B, Form 4BL
- Applications
- Orthodontic Models
- Ultimate Tensile Strength
- 62.0 MPa
- Elongation at Break
- 11.0 %
- Flexural Strength
- 106.0 MPa
- Notched Izod
- 37.0 J/m
- Heat Deflection Temp. @ 1.8 MPa
- 61.0 °C
- Heat Deflection Temp. @ 0.45 MPa
- 76.0 °C
- Flexural Modulus
- 2740.0 MPa
- Tensile Modulus
- 2670.0 MPa
Select Printer Series and Resin Volume
Compatibility
- 3D Printer
- Form 4L, Form 4BL, Form 4, Form 4B
- Build Platform
- Form 4 Build Platform, Form 4 Flex Build Platform, Form 4L Build Platform, Form 4L Flex Build Platform
- Tank
- Form 4 Resin Tank, Form 4L Resin Tank
Fast Model Resin (Form 4)—
Learn moreFast Model Resin is Formlabs’ fastest resin that is ideal for 3D printing dental models and orthodontic models for thermoforming clear aligners and retainers. Print 11 models on Form 4B in only 9 minutes or 32 models on Form 4BL in 14 minutes.
Fast Model Resin is the next generation of Draft Resin that leverages the Form 4 Series to print three times faster, while offering improved mechanical properties.

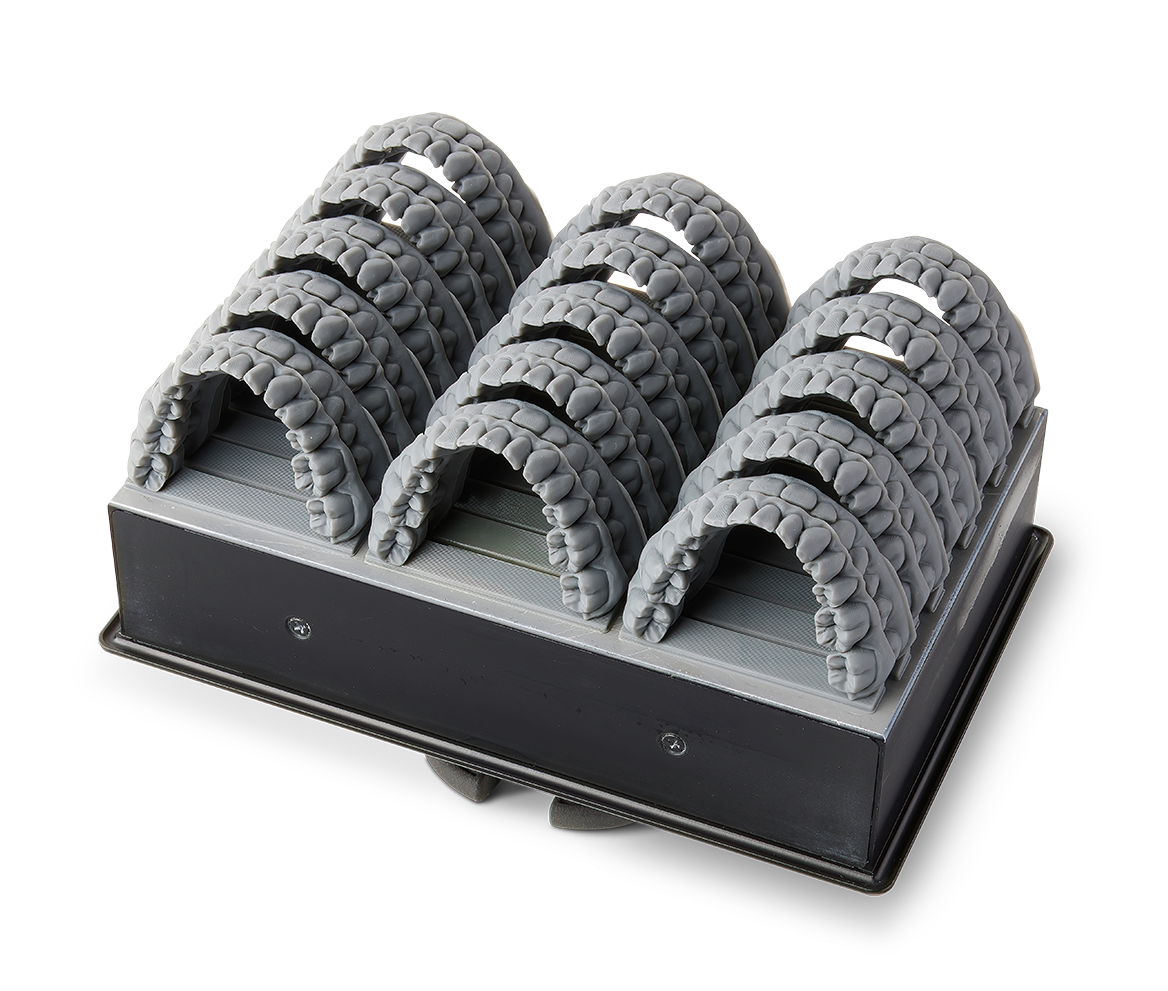

Learn moreGrey Resin is an exceptionally versatile General Purpose Resin, offering an optimal balance of fast print speed, high accuracy, presentation-ready appearance, strong mechanical properties, and an easy, reliable workflow.
Create parts that are stiff and strong with a surface finish that rivals injection molding. Grey Resin has a rich, matte color that captures fine features accurately.
Grey Resin V5 is a new material formulation that leverages the Form 4 Series to print three times faster than the previous version, while offering improved mechanical properties.
Clear aligner models, orthodontic models
Diagnostic models, fit models
Speed
Versatility
Why Choose Fast Model Resin?
Fast Model Resin is Formlabs’ fastest dental 3D printing resin, capable of printing at speeds of 100 mm per hour.
Print a Model a Minute
Print 11 arches in one job in just 9 minutes.
Fast Post-Processing
Post-process parts quickly with a 5-minute wash and 5-minute room temperature post-cure.
Unmatched Reliability
Print confidently with an end-to-end product ecosystem rigorously validated for continuous uptime and reliability.
Accurate Orthodontic Models
Consistently create orthodontic models with 95% of printed surface area within 100 μm of the digital model.
What’s New With Fast Model Resin?
Fast Model Resin is the next generation of Draft Resin, formulated to leverage the new Form 4 ecosystem.
Compared to Draft Resin V2, Fast Model Resin is:
- Faster — formulated to take advantage of the new Form 4 ecosystem to print three times faster
-
More opaque and matte in color
-
Stronger and stiffer — 45% higher strength and modulus
Post-Processing
Wash Settings
Duration
5 minutes
Notes
Start with a 5-minute wash and modify the wash time based on your part geometry and solvent purity.
Cure Settings
Default
5 minutes at room temperature
Enhanced
15 minutes at 60 °C
Notes
Fast Model Resin can either be used with either a 5-minute room temperature cure for faster turnarounds or with a 15-minute cure at 60 °C for improved strength, stiffness, and heat deflection temperature.
