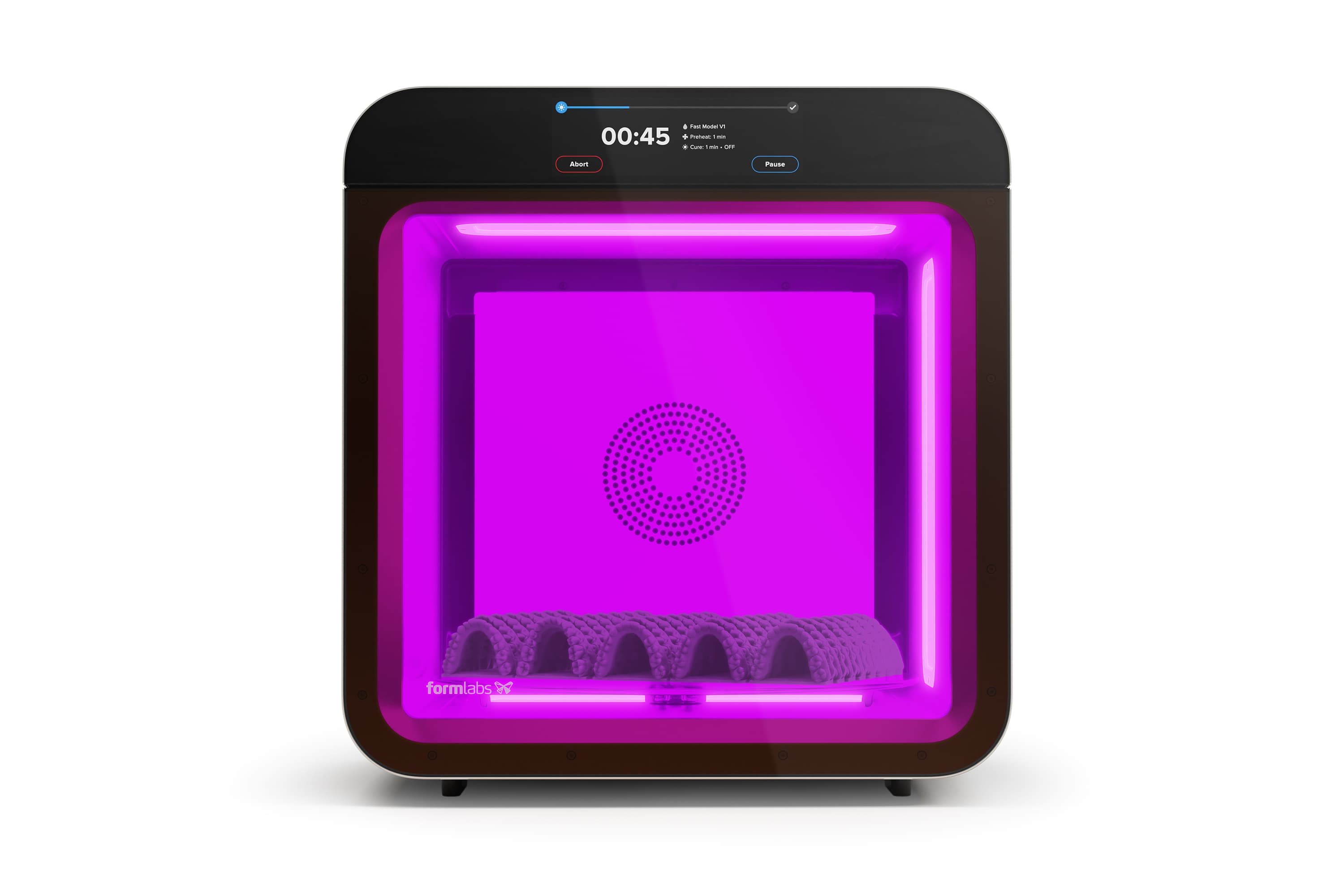

Form Cure L V2 230V

Compatible Printer: Form 4B, Form 4BL, Form 3B, Form 3BL

Form Cure L V2 precisely combines heat and 405 nm light to deliver tough, strong prints with unprecedented speed and consistency. Now you can post-cure large Form 4L/BL prints in as little as 60 seconds, with 5x more UV power, faster heat-up times, and a 26% reduction in overall footprint from the previous generation while curing up to 19% larger parts. To begin curing, just select a validated preset for Formlabs 45+ materials. Advanced users can customize time and temperature to fit their specific needs.

Post-curing completes the chemical reaction started during printing, enhancing final part strength, toughness, heat resistance, and creep resistance while creating a harder, less tacky surface. For biocompatible materials, post-curing is necessary to achieve the safety standards determined by regulatory agencies.

Compatible Printer: Form 4B, Form 4BL, Form 3B, Form 3BL

Form Cure L V2 230VFHL-CU-230V-02

Post-Cure Large Batches of Models in 60 Seconds

Rapid curing and quick heat up for consistent, validated results and effortless post-curing of large batches of dental 3D prints.

Blazing Fast Curing

5-6x faster cure cycles and 40% quicker heat up times than the previous generation.

Near instant heat-up

60 °C in 150 seconds*

80 °C in 360 seconds*

_{*(230V version)}

Fast curing

Model Resins in 60 seconds

Biocompatible Resins in 5-10 minutes

Consistent, validated results

Optimized for reliable and repeatable curing performance

Convection heating system that reaches temperatures up to 100 °C
96 multi-directional LEDs that provide a uniform irradiance of 14.5 mW/cm²

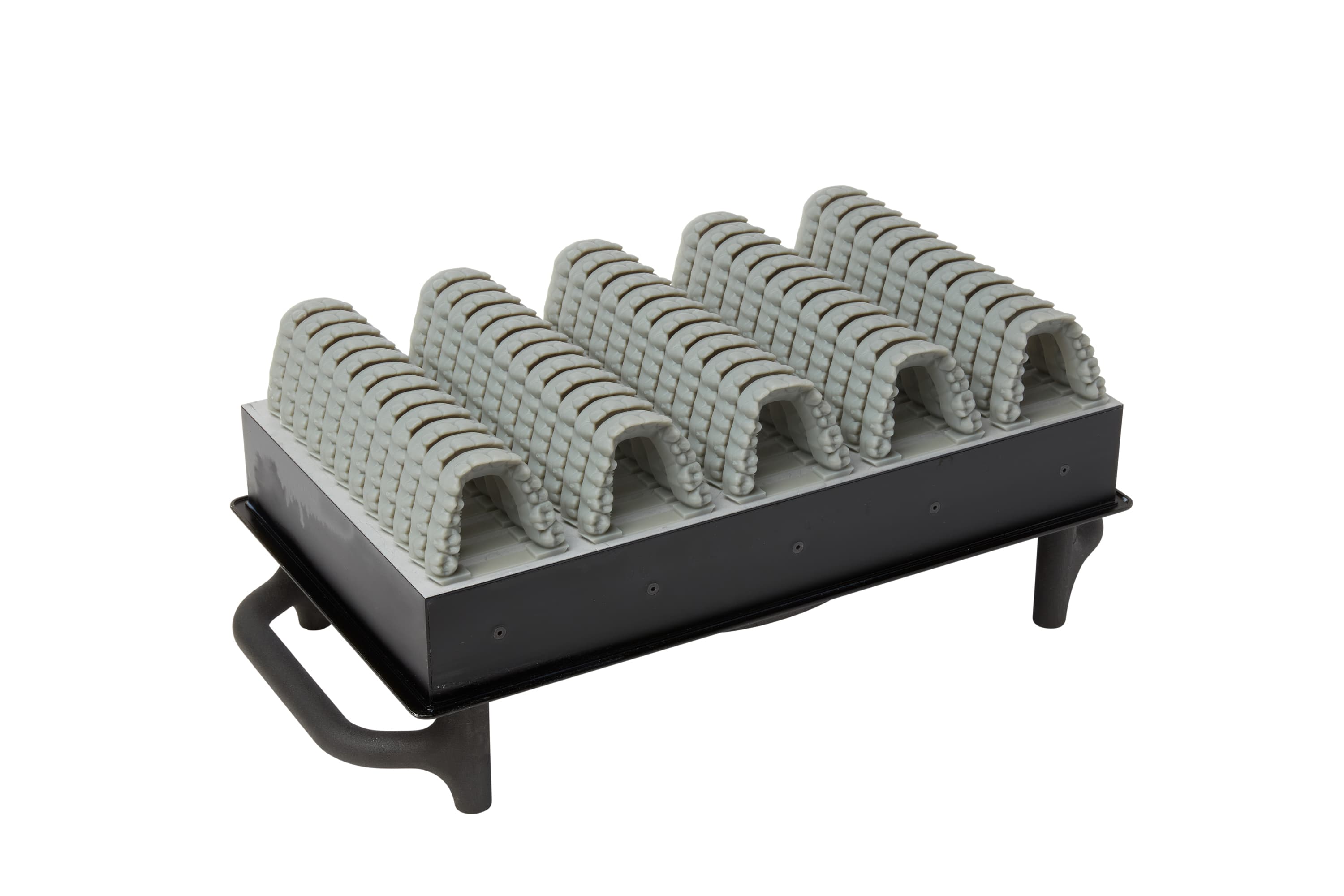

Post-Cure Large Batches

Designed to fit a full Form 4BL production batch or multiple Form 4B batches.

353 mm x 196 mm x 365 mm
404 mm diameter rotating turntable

Easier Than Ever

Compact new design makes curing as easy as pushing a button, completing the Form 4BL Ecosystem.

45+ pre-programmed cure profiles
Easy-to-clean glass turntable
26% smaller footprint

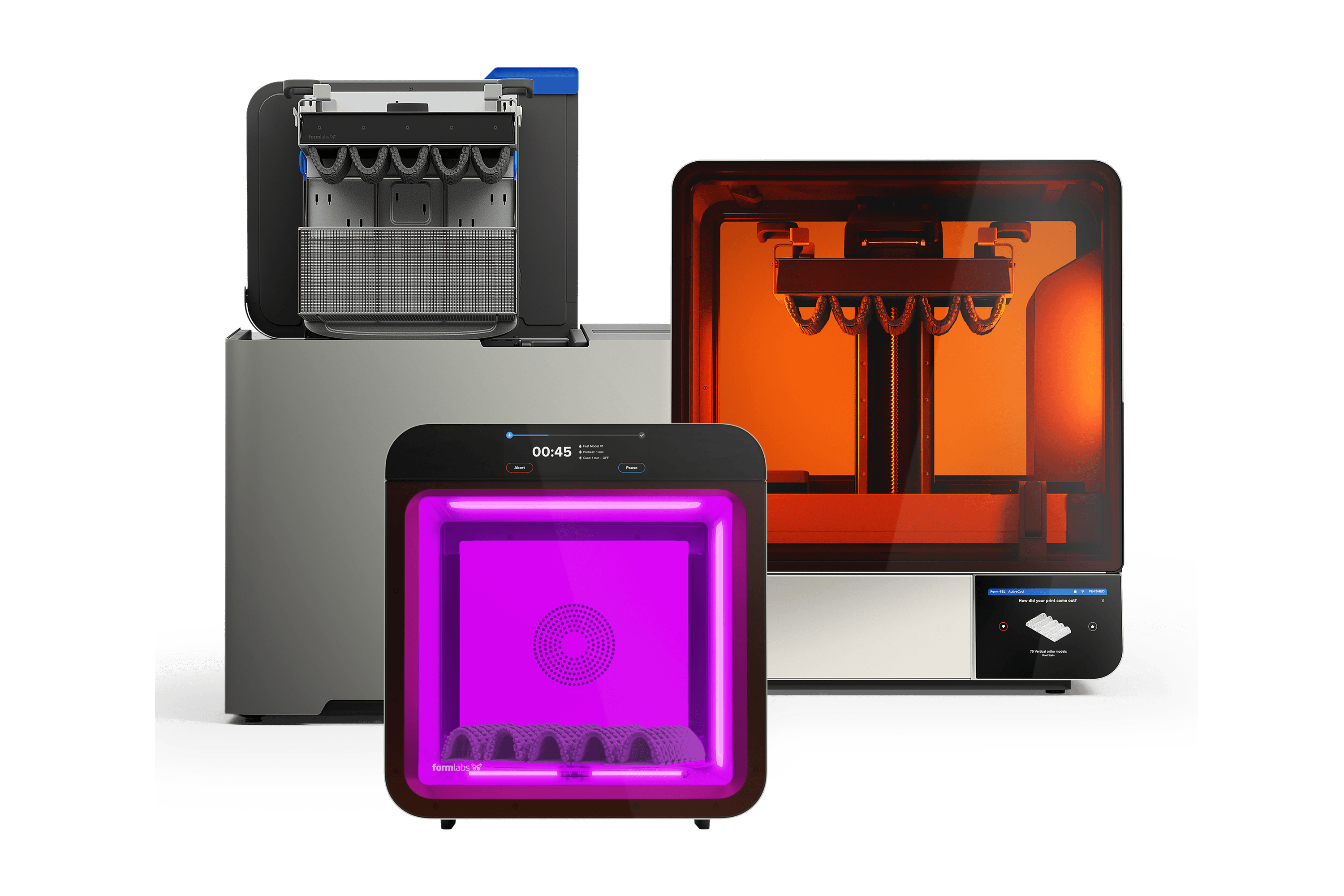

Form 4BL Workflow in Minutes

Form Cure L is part of a 3D printing ecosystem that’s easy to learn and use, and requires little intervention or maintenance. Watch the video to learn the basics of how to use Form 4BL, from software, to materials, printing, and post-processing.

Tech Specs

Parameter	Form Cure L V2	Form Cure L V1	Form Cure V2	Form Cure V1
Printer Compatibility	Form 4L, Form 4BL, Form 4, Form 4B, Form 3/B/+, Form 2	Form 4, Form 4B, Form 3/B/+, Form 2	Form 4, Form 4B, Form 3/B/+, Form 2	Form 3/B/+, Form 2
Dimensions	507 × 543 × 545 mm 20.0 × 21.4 × 21.5 in	690 x 540 x 445 mm 27.2 x 21.3 x 17.5 in	337 × 404 × 372 mm 13.3 × 14.0 × 15.9 in	262 x 262 x 340 mm 10.3 x 10.3 x 13.4 in Height when open: 640 mm (25.2 in)
Weight	40.0 kg 88.2 lb	24 kg 53 lb	12.1 kg 26.7 lb	5.6 kg 12.4 lb
Turntable Dimeter	404 mm 15.9 in	395 mm 15.6 in	235 mm 9.25 in	193 mm 7.6 in
Maximum Part Height	365 mm 14.4 in	320 mm 12.6 in	245 mm 9.64 in	185 mm 7.28 in
Maximum Cure Chamber Temperature	100 °C 212 °F	80 °C 176 °F	100 °C 212 °F	80 °C 176 °F
Light Source	96 multi-directional LEDs	45 multi-directional LEDs	48 multi-directional LEDs	13 multi-directional LEDs
LED Power	350 W	70 W	150 W	39 W
LED Radiant	120 W	36 W	50 W	9.1 W
LED Wavelength	405 nm	375 nm, 405 nm	405 nm	405 nm
Power Requirements	Input (NA): 100 – 125 VAC, 50–60Hz, 15 A Input (EU): 220 – 240 VAC, 50–60Hz, 8 A	Input (NA) 100 - 120 V VAC, 50-60 Hz, 15 A Input (EU) 220 - 240 V VAC, 50-60 Hz, 8 A	Input (NA) 100 - 120 V VAC, 50-60 Hz, 15 A Input (EU) 220 - 240 V VAC, 50-60 Hz, 8 A	90–240 V 6.0 A 50/60 Hz 144 W
