Model Resin V3 (Form 3)
- Print Technology
- SLA
- Applications
- Restorative Models, Diagnostic Models
- Colors
- Beige
- Compatible Printer
- Form 3B, Form 3BL
- Ultimate Tensile Strength
- 48.0 MPa
- Elongation at Break
- 4.8 %
- Flexural Strength
- 85.0 MPa
- Notched Izod
- 23.0 J/m
- Unnotched Izod
- 324.0 J/m
- Heat Deflection Temp. @ 1.8 MPa
- 56.0 °C
- Heat Deflection Temp. @ 0.45 MPa
- 75.0 °C
- Thermal Expansion
- 76.0 μm/m/°C
- Tensile Modulus
- 2300.0 MPa
- Flexural Modulus
- 2200.0 MPa
Model Resin V3 is a fast-printing material for the production of high-accuracy restorative models. Model Resin was developed to meet the precision, reliability, and throughput requirements of restorative dentistry. Print accurate models and dies with crisp margins and contacts, delivering high-quality results on fast-paced timelines.
Model Resin V3 is compatible with Form 3 and Form 2 Series printers. Choose Precision Model Resin on the Form 4 Series for better accuracy, three times faster print speed, and improved aesthetics.
An optional Fit Tuning Test on Form 3, Form 3B, and Form 3B+ allows you to dial in precise dimensional fit depending on your use case.
Read our application guide to learn the complete digital workflow and best practices for making 3D printed restorative models on your Formlabs 3D printer.
- Print Technology
- SLA
- Applications
- Restorative Models, Diagnostic Models
- Colors
- Beige
- Compatible Printer
- Form 3B, Form 3BL
- Ultimate Tensile Strength
- 48.0 MPa
- Elongation at Break
- 4.8 %
- Flexural Strength
- 85.0 MPa
- Notched Izod
- 23.0 J/m
- Unnotched Izod
- 324.0 J/m
- Heat Deflection Temp. @ 1.8 MPa
- 56.0 °C
- Heat Deflection Temp. @ 0.45 MPa
- 75.0 °C
- Thermal Expansion
- 76.0 μm/m/°C
- Tensile Modulus
- 2300.0 MPa
- Flexural Modulus
- 2200.0 MPa
Select Printer Series and Resin Volume
Compatibility
- 3D Printer
- Form 3, Form 3L, Form 3B, Form 3BL, Form 2
- Build Platform
- Form 3 Build Platform, Form 3 Build Platform 2, Form 3 Stainless Steel Build Platform, Form 3L Build Platform, Form 3L Build Platform 2L
- Tank
- Form 2 LT Tank, Form 3 Resin Tank V2.1, Form 3L Resin Tank V3
Model Resin V3 (Form 3)—
Why Choose Model Resin?
Model Resin enables dental professionals to print models in high volume, easily handle rush cases, and deliver highly-accurate custom fixed prosthetics and implants.
Fast
Produce models in high volume and easily handle rush cases.
Consistent and Reliable
Don’t spend time troubleshooting or redoing cases, get it right the first time.
Accurate
Deliver high-quality results with models you can rely on.
Biocompatibility
Provide the patient and clinician the peace of mind they deserve.
Applications
Formlabs 3D printers can quickly produce high-quality solid models, removable die models, and implant analog models with crisp margins and contacts.

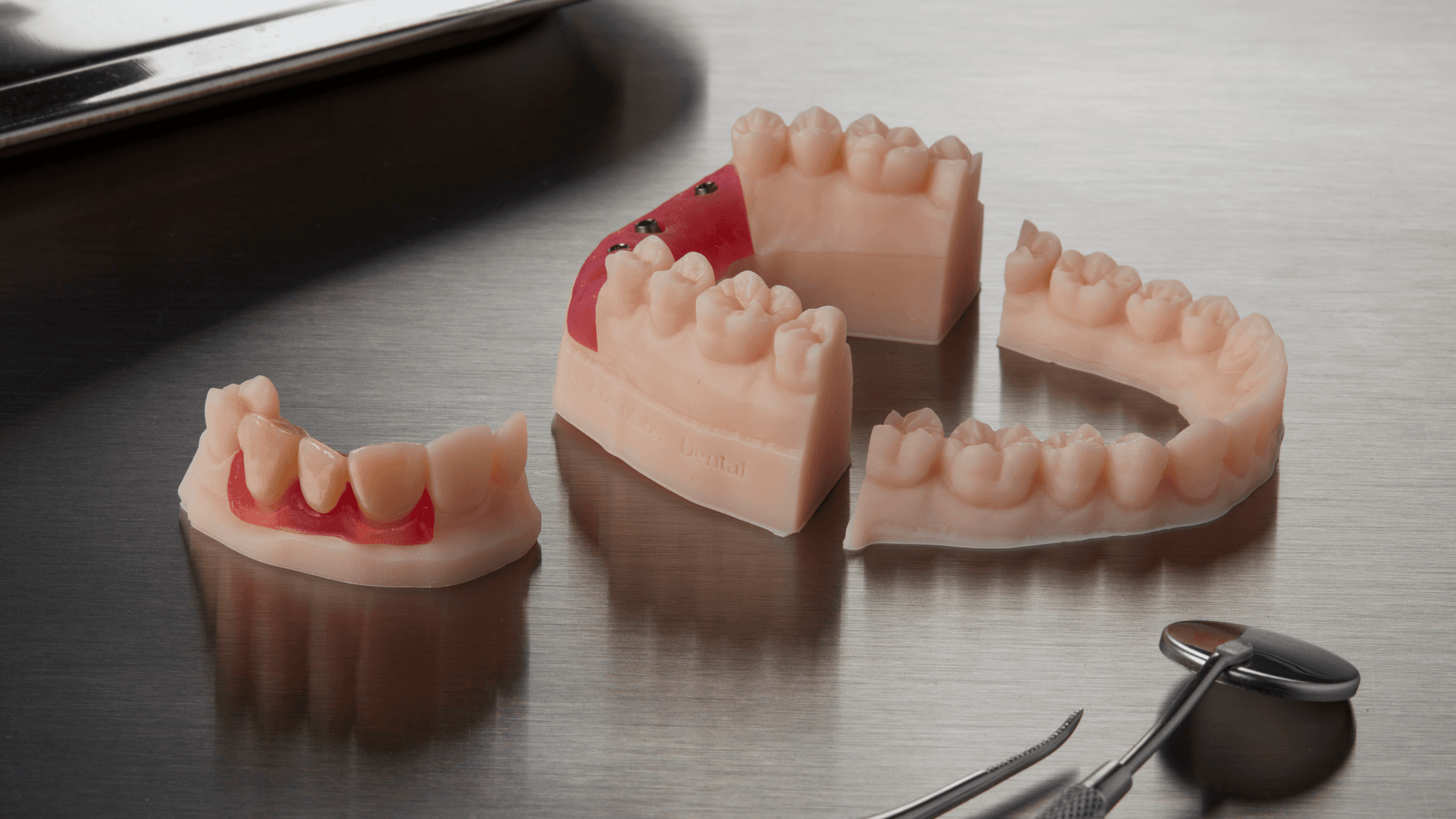

Restorative models and implant analog models

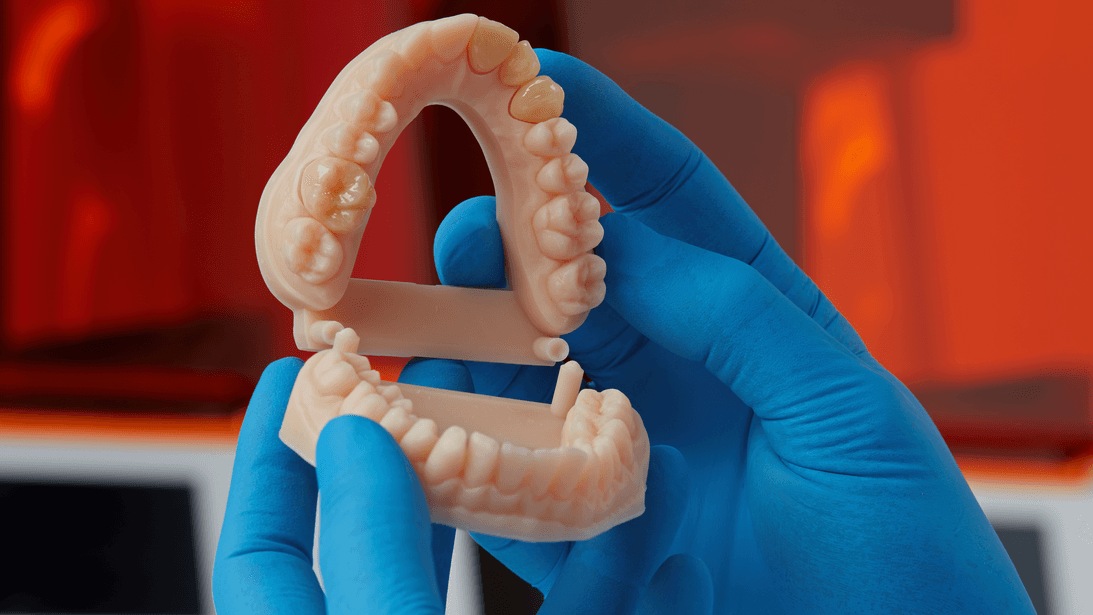

Orthodontic models and diagnostic models
Material Properties*
| Parameter | Value |
|---|---|
|
Ultimate Tensile Strength |
48 MPa |
|
Tensile Modulus |
2.3 GPa |
|
Elongation |
4.8% |
|
Flexural Modulus |
2.2 GPa |
|
Notched Izod |
24 J/m |
|
Heat Deflection Temp. @ 0.45 MPa |
75 °C |
* Material properties may vary based on part geometry, print orientation, print settings, and temperature. Data for post-cured samples were measured on Type IV tensile bars printed on a Form 3 printer with 100 μm Model Resin settings, washed in a Form Wash for 10 minutes in ≥99% Isopropyl Alcohol, and post-cured at 60°C for 5 minutes in a Form Cure
Post-Processing
Washing
Duration
10 min in IPA
Notes
When using a single wash bucket, residue from previously washed parts deposits on part surfaces. If washing darker-colored materials like Black Resin in the same wash bucket as lighter-colored materials like White Resin or Clear Resin, some color transfer may occur.
Curing
Duration
5 min
Temperature
60 °C
Notes
There is only one recommended post-curing time for Model Resin V3.
