Precision Model Resin (Form 4)
- Print Technology
- SLA
- Applications
- Restorative Models, Diagnostic Models
- Compatible Printer
- Form 4B, Form 4BL
- Colors
- Beige
- Elongation at Break
- 8.6 %
- Flexural Strength
- 87.0 MPa
- Notched Izod
- 32.0 J/m
- Unnotched Izod
- 262.0 J/m
- Heat Deflection Temp. @ 0.45 MPa
- 53.5 °C
- Heat Deflection Temp. @ 1.8 MPa
- 46.0 °C
- Thermal Expansion
- 81.1 μm/m/°C
- Ultimate Tensile Strength
- 50.0 MPa
- Flexural Modulus
- 2300.0 MPa
- Tensile Modulus
- 2200.0 MPa

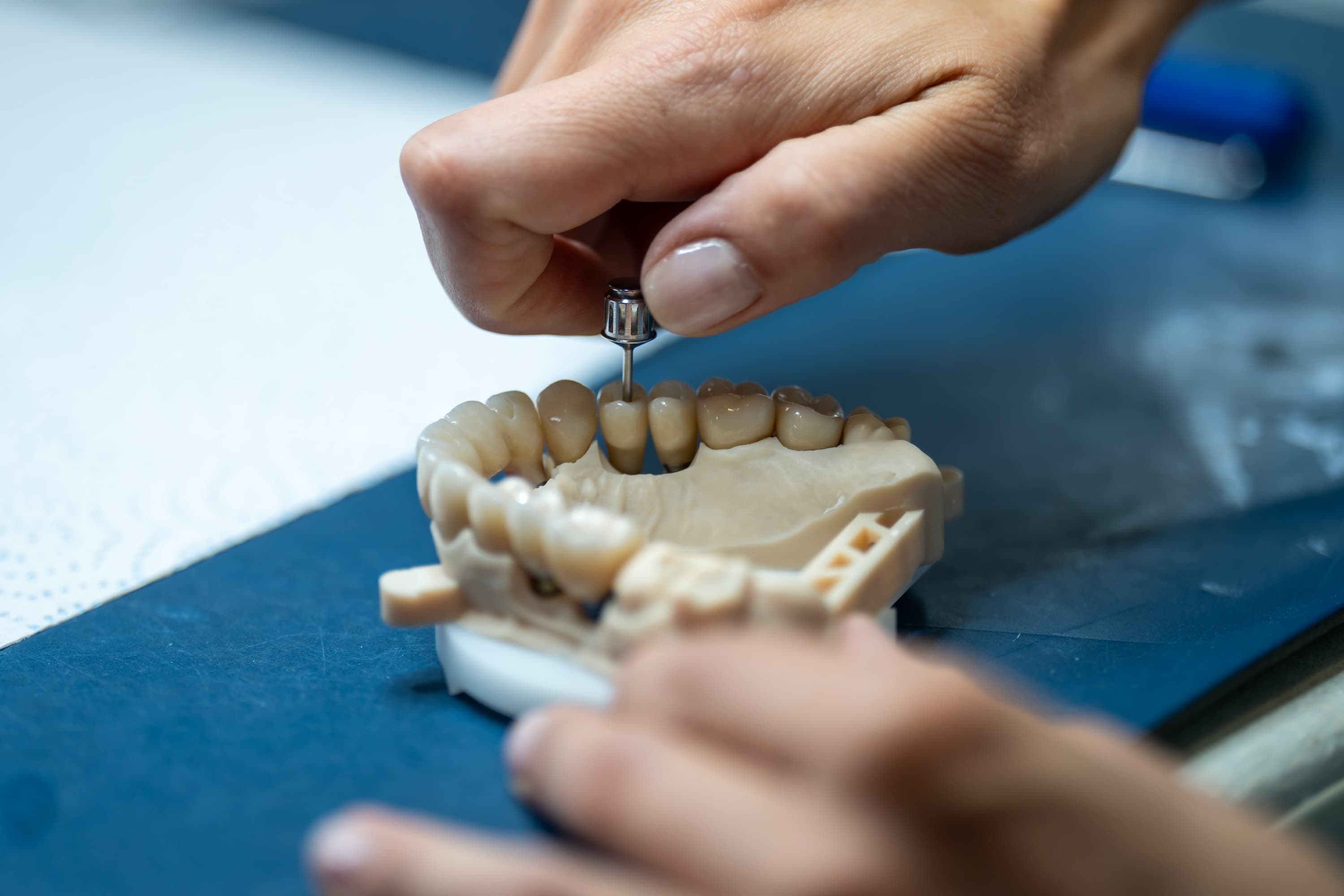

Precision Model Resin is a high-accuracy material for creating restorative models with >99% of printed surface area within 100 μm of the digital model. Create beautiful models with crisp margin lines thanks to high opacity, beige color, and a smooth, matte finish to capture fine details.
Precision Model Resin is the next generation of Model Resin that leverages the Form 4 Series to print three times faster, while offering better accuracy and improved aesthetics.
Read our application guide to learn the complete digital workflow and best practices for making 3D printed restorative models on your Formlabs 3D printer.
- Print Technology
- SLA
- Applications
- Restorative Models, Diagnostic Models
- Compatible Printer
- Form 4B, Form 4BL
- Colors
- Beige
- Elongation at Break
- 8.6 %
- Flexural Strength
- 87.0 MPa
- Notched Izod
- 32.0 J/m
- Unnotched Izod
- 262.0 J/m
- Heat Deflection Temp. @ 0.45 MPa
- 53.5 °C
- Heat Deflection Temp. @ 1.8 MPa
- 46.0 °C
- Thermal Expansion
- 81.1 μm/m/°C
- Ultimate Tensile Strength
- 50.0 MPa
- Flexural Modulus
- 2300.0 MPa
- Tensile Modulus
- 2200.0 MPa
Select Printer Series and Resin Volume
Compatibility
- 3D Printer
- Form 4L, Form 4BL, Form 4, Form 4B
- Build Platform
- Form 4 Build Platform, Form 4 Flex Build Platform, Form 4L Build Platform, Form 4L Flex Build Platform
- Tank
- Form 4 Resin Tank, Form 4L Resin Tank
Precision Model Resin (Form 4)—
Learn moreFast Model Resin is Formlabs’ fastest resin that is ideal for 3D printing dental models and orthodontic models for thermoforming clear aligners and retainers. Print 11 models on Form 4B in only 9 minutes or 32 models on Form 4BL in 14 minutes.
Fast Model Resin is the next generation of Draft Resin that leverages the Form 4 Series to print three times faster, while offering improved mechanical properties.
Learn moreGrey Resin is an exceptionally versatile General Purpose Resin, offering an optimal balance of fast print speed, high accuracy, presentation-ready appearance, strong mechanical properties, and an easy, reliable workflow.
Create parts that are stiff and strong with a surface finish that rivals injection molding. Grey Resin has a rich, matte color that captures fine features accurately.
Grey Resin V5 is a new material formulation that leverages the Form 4 Series to print three times faster than the previous version, while offering improved mechanical properties.
Clear aligner models, orthodontic models
Diagnostic models, fit models
Speed
Versatility
Why Choose Precision Model Resin?
Precision Model Resin is a high-accuracy 3D printing resin formulated to create restorative models with over 99% of their printed surface area within 100 μm of the design parameters.
Ultra High-Accuracy Models
Consistently create restorative models with over 99% of printed surface area within 100 μm of the digital model.
Unmatched Reliability
Print confidently with an end-to-end product ecosystem rigorously validated for continuous uptime and reliability.
Production-Capable Print Speed

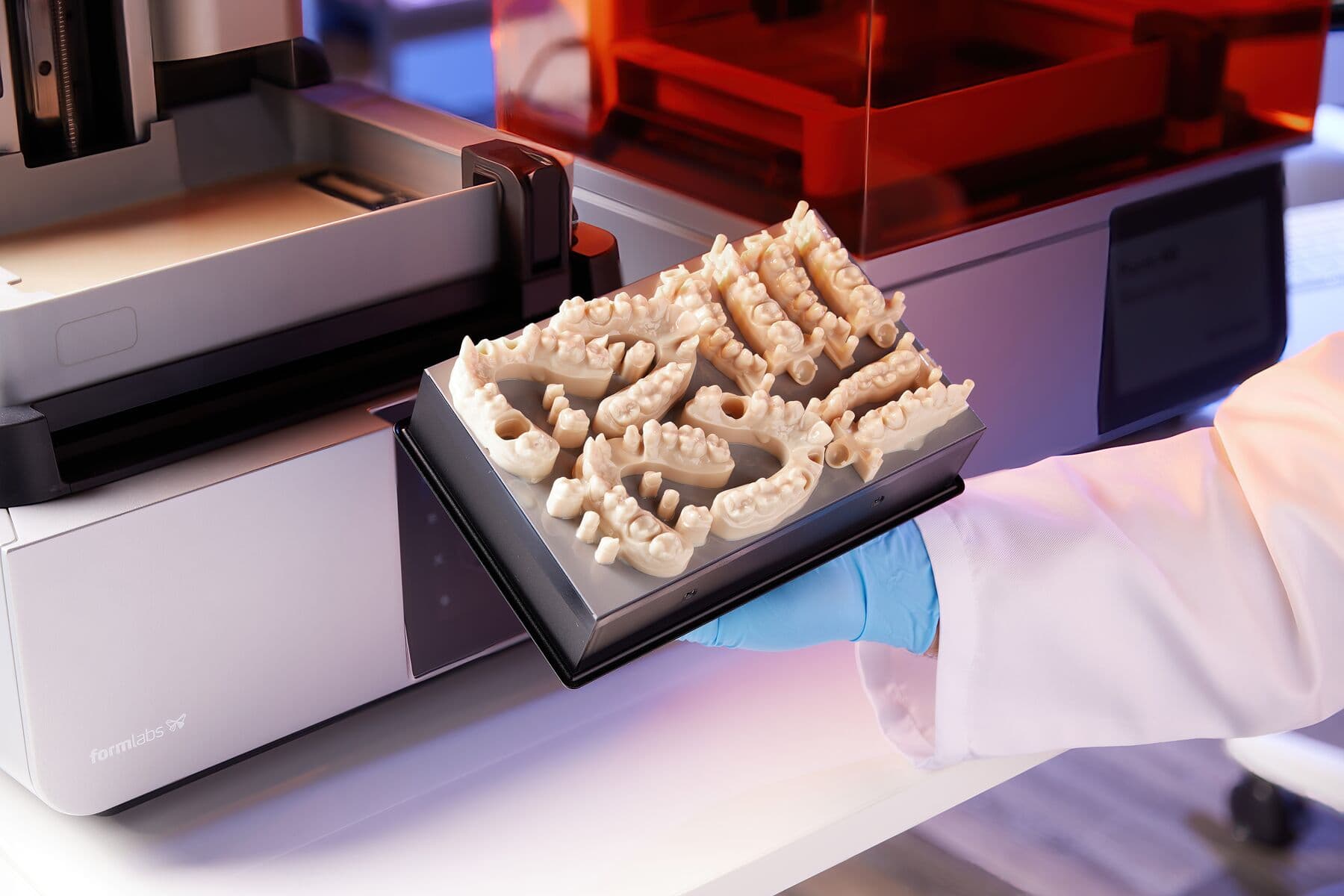

Print eight models in as little as 90 minutes and post-process parts quickly with a 5-minute wash and 5-minute room temperature post-cure.
Gypsum-Like Appearance
Easily visualize crisp margins with the matte, opaque beige color.
What’s New With Precision Model Resin?
Precision Model Resin is the next generation of Model Resin, formulated to leverage the new Form 4 ecosystem. Compared to Model Resin V3, Precision Model Resin is:
- More accurate — better fine feature resolution and consistency
- More opaque and matte aesthetics to better visualize margin lines
- Faster — formulated to take advantage of the new Form 4 ecosystem to print three times faster
Post-Processing
Washing
The foundational step in any SLA post-processing workflow is to remove any excess resin on the surface of the parts through an alcohol or ether wash.
SETTINGS
Curing
Post-curing for General Purpose Resins is optional. However, Formlabs recommends a short post-curing to reduce surface tack and improve mechanical properties.
SETTINGS
Form Cure V1 | Form Cure V2 | Form Cure L V1 | Form Cure L V2
Request a Free Sample Part
See and feel Formlabs quality firsthand. We’ll ship a free Precision Model Resin 3D printed sample part to your office.
