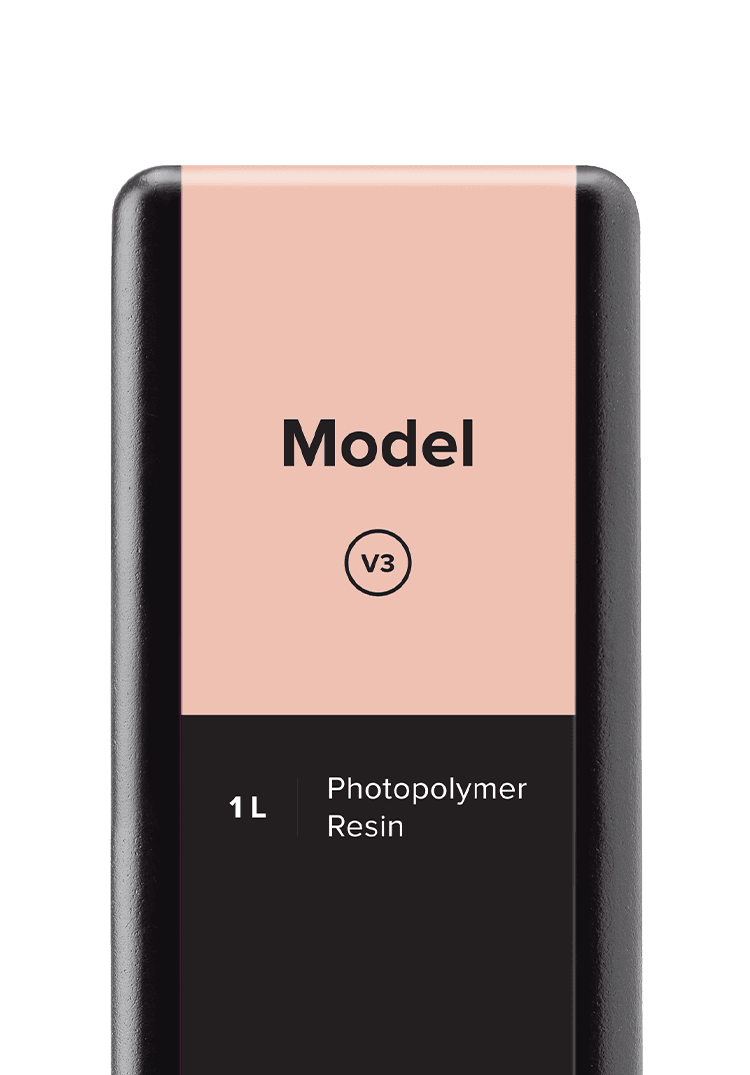

Model Resin V3 (Form 3)

From€181.50incl. 21% BTW

Model Resin V3 is a fast-printing material for the production of high-accuracy restorative models. Model Resin was developed to meet the precision, reliability, and throughput requirements of restorative dentistry. Print accurate models and dies with crisp margins and contacts, delivering high-quality results on fast-paced timelines.

Model Resin V3 is compatible with Form 3 and Form 2 Series printers. Choose Precision Model Resin on the Form 4 Series for better accuracy, three times faster print speed, and improved aesthetics.

An optional Fit Tuning Test on Form 3, Form 3B, and Form 3B+ allows you to dial in precise dimensional fit depending on your use case.

Read our application guide to learn the complete digital workflow and best practices for making 3D printed restorative models on your Formlabs 3D printer.

Compatible Tank: Form 2 LT Tank, Form 3 Resin Tank V2.1, Form 3L Resin Tank V3
Compatible Build Platform: Form 3 Build Platform, Form 3 Build Platform 2, Form 3 Stainless Steel Build Platform, Form 3L Build Platform, Form 3L Build Platform 2L
Print Technology: SLA
Applications: Restorative Models, Diagnostic Models
Colors: Beige
Compatible Printer: Form 3B, Form 3BL
Ultimate Tensile Strength: 48.0 MPa
Tensile Modulus: 2300.0 MPa
Flexural Strength: 85.0 MPa
Flexural Modulus: 2200.0 MPa
Notched Izod: 23.0 J/m
Elongation at Break: 4.8 %
Heat Deflection Temp. @ 1.8 MPa: 56.0 °C
Heat Deflection Temp. @ 0.45 MPa: 75.0 °C
Thermal Expansion: 76.0 μm/m/°C
Unnotched Izod: 324.0 J/m

Model Resin V3 is compatible with Form 3 and Form 2 Series printers. Choose Precision Model Resin on the Form 4 Series for better accuracy, three times faster print speed, and improved aesthetics.

An optional Fit Tuning Test on Form 3, Form 3B, and Form 3B+ allows you to dial in precise dimensional fit depending on your use case.

Read our application guide to learn the complete digital workflow and best practices for making 3D printed restorative models on your Formlabs 3D printer.

Compatible Tank: Form 2 LT Tank, Form 3 Resin Tank V2.1, Form 3L Resin Tank V3
Compatible Build Platform: Form 3 Build Platform, Form 3 Build Platform 2, Form 3 Stainless Steel Build Platform, Form 3L Build Platform, Form 3L Build Platform 2L
Print Technology: SLA
Applications: Restorative Models, Diagnostic Models
Colors: Beige
Compatible Printer: Form 3B, Form 3BL
Ultimate Tensile Strength: 48.0 MPa
Tensile Modulus: 2300.0 MPa
Flexural Strength: 85.0 MPa
Flexural Modulus: 2200.0 MPa
Notched Izod: 23.0 J/m
Elongation at Break: 4.8 %
Heat Deflection Temp. @ 1.8 MPa: 56.0 °C
Heat Deflection Temp. @ 0.45 MPa: 75.0 °C
Thermal Expansion: 76.0 μm/m/°C
Unnotched Izod: 324.0 J/m

Bulk Order Discount

15%: 30 L
20%: 60 L
25%: 120 L
30%: 240 L
35%: 1,000 L
40%: 2,000 L
45%: 3,000 L

Select Printer Series and Resin Volume

5 L - Form 3€713.90 incl. 21% BTW
1 L - Form 3€181.50 incl. 21% BTW

Accessories

€163.35 incl. 21% BTWForm 3 Resin Tank V2.1
Form 3 Resin Tank V2.1
Low Force Stereolithography (LFS)™ 3D printing uses linear illumination and a flexible film tank to turn liquid resin into flawless parts. A key component of the LFS process, the strong dual-layer film at the bottom of the Form 3 Resin Tank, allows for a dynamic and precise print process.

Notice: Form 3 Resin Tank V2.1 is compatible with all Formlabs resins, but is required for use with some specific materials. There are two previous versions of the Form 3 Resin Tank, Tank V1 and Tank V2, each with their own compatibility requirements. Read more about all tank versions, compatibility, lifetime, and maintenance in our support article.
Tech specs
Compatible Printer
Form 3B
€163.35 incl. 21% BTW
€332.75 incl. 21% BTWForm 3L Resin Tank V3
Form 3L Resin Tank V3
Low Force Stereolithography (LFS)™ 3D printing uses linear illumination and a flexible film tank to turn liquid resin into flawless parts. A key component of the LFS process, the strong dual-layer film at the bottom of the Form 3L Resin Tank allows for a dynamic and precise print process, scaled up for large format printing.

Form 3L Resin Tank V3 offers an improved print success rate in some cases compared to the previous version of the Form 3L Resin Tank V2.
€332.75 incl. 21% BTW

Why Choose Model Resin?

Model Resin enables dental professionals to print models in high volume, easily handle rush cases, and deliver highly-accurate custom fixed prosthetics and implants.

Fast

Produce models in high volume and easily handle rush cases.

Consistent and Reliable

Don’t spend time troubleshooting or redoing cases, get it right the first time.

Accurate

Deliver high-quality results with models you can rely on.

Biocompatibility

Provide the patient and clinician the peace of mind they deserve.

Applications

Formlabs 3D printers can quickly produce high-quality solid models, removable die models, and implant analog models with crisp margins and contacts.

Restorative models and implant analog models

Orthodontic models and diagnostic models

Material Properties*

Download Model Resin Technical Data Sheet

Parameter	Value
Ultimate Tensile Strength	48 MPa
Tensile Modulus	2.3 GPa
Elongation	4.8%
Flexural Modulus	2.2 GPa
Notched Izod	24 J/m
Heat Deflection Temp. @ 0.45 MPa	75 °C

* Material properties may vary based on part geometry, print orientation, print settings, and temperature. Data for post-cured samples were measured on Type IV tensile bars printed on a Form 3 printer with 100 μm Model Resin settings, washed in a Form Wash for 10 minutes in ≥99% Isopropyl Alcohol, and post-cured at 60°C for 5 minutes in a Form Cure

Post-Processing

Washing

Duration

10 min in IPA

Notes

When using a single wash bucket, residue from previously washed parts deposits on part surfaces. If washing darker-colored materials like Black Resin in the same wash bucket as lighter-colored materials like White Resin or Clear Resin, some color transfer may occur.

Curing
