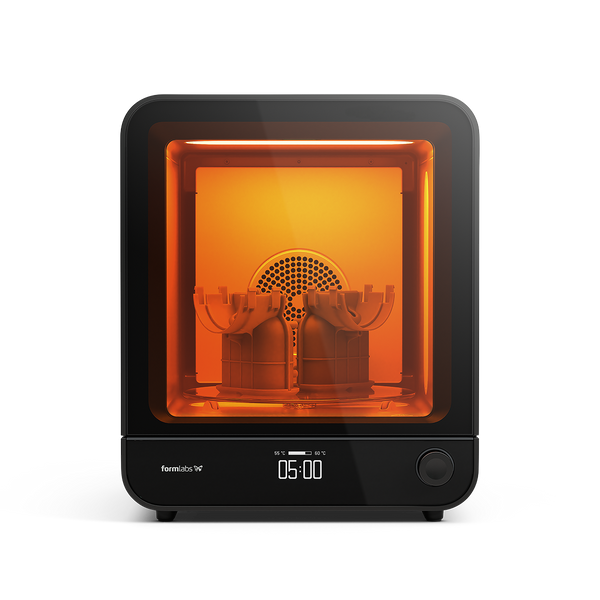

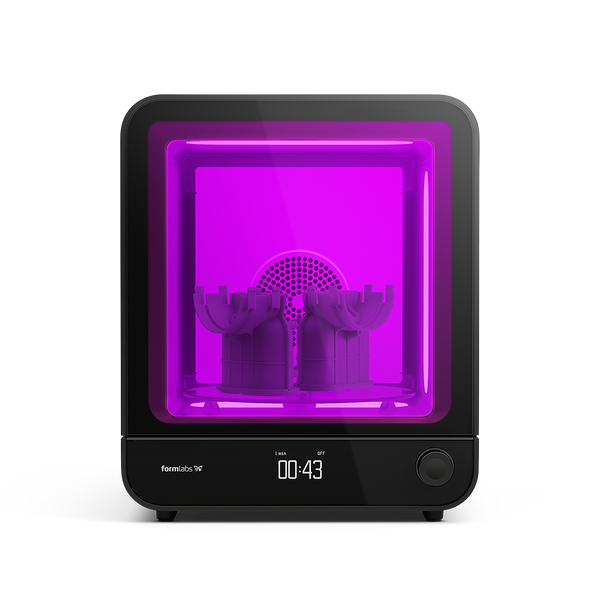

Form Cure (2nd Generation) 120V
FH-CU-120V-02
Form Cure (2nd Generation) precisely combines heat and 405 nm light to deliver tough, strong prints with unprecedented speed and consistency. Now you can post-cure Form 4/B prints in as little as 60 seconds, with 4x more UV power, 5x faster heat-up times, and a 1.3x larger chamber. To begin curing, just select a validated preset for Formlabs 45+ materials. Advanced users can customize time and temperature to fit their specific needs.
Post-curing completes the chemical reaction started during printing, enhancing final part strength, toughness, heat resistance, and creep resistance while creating a harder, less tacky surface.
For biocompatible materials, post-curing is necessary to achieve the safety standards determined by regulatory agencies.
- Form Cure (2nd Generation) 120V
Cure Any Dental Part in Less Than 10 Minutes
Rapid curing for dental applications with pre-programmed settings, high throughput, and effortless operation.
Blazing Fast Curing, Nearly Instant Heat Up Time
Post Cure any dental application in 1-10 minutes and reduce biocompatible appliance post-cure times by as much as 50 minutes.*
*Based on Dental LT Clear Resin V2 when compared to Form Cure (1st Generation).
Consistent, Validated Results
Pre-programmed and validated cure settings empower you to safely cure biocompatible resins, without guesswork.
Cure 15 Models Per Minute
One cure unit can serve multiple Form 4B printers running continuously. Technicians no longer need to walk away from the unit due to the rapid curing of dental models.
Easier than Ever

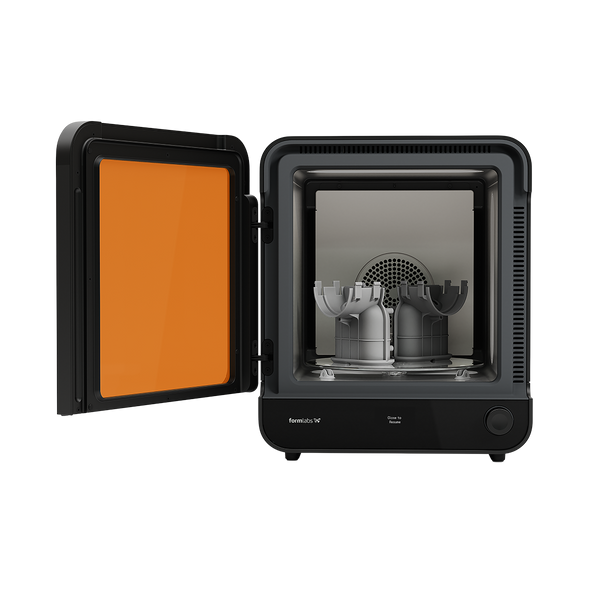

Sleek new design with an easy-to-clean glass turntable, and side-opening door to allow easy access within a compact footprint. High clearance for easy part placement and removal.
Blazing Fast Curing
Form Cure (2nd Generation) is engineered to deliver rapid, consistent, and high-quality post-curing results.
Near instant heat-up:
60 °C
80 °C
Fast curing:
Precision and Fast Model Resins Cure
Biocompatible materials less than
Precise and Consistent Results
Reach temperatures up to:
Maximized Capacity and Efficiency
Fit up to 15 full models on the 235 mm rotating turntable.
Form 4 Workflow in Minutes
Form Cure is a part of a 3D printing ecosystem that’s easy to learn and use and requires little intervention or maintenance. Watch the video to learn the basics of how to use Form 4, from the software and materials to printing and post-processing.
Tech Specs
| Form Cure (2nd Generation) | Form Cure (1st Generation) | Fast Cure | |
|---|---|---|---|
| Printer Compatibility | Form 4, Form 4B, Form 3/+, Form 3B/+, Form 2 | Form 3/+, Form 3B/+, Form 2 | Form 4/4B, Form 4L/4BL, Form 2, Form 3B/+, Form 3/+, Form 3L/BL, Form 4/4B, Form 4L/4BL (limited height to 6.5cm) |
| Dimensions | 33.7 × 40.4 × 37.2 cm 13.3 × 14.0 × 15.9 in | 26.2 x 26.2 x 34.0 cm 10.3 x 10.3 x 13.4 in Height when open: 64 cm (25.2 in) | 27.5 x 31.0 x 31.0 cm 10.8 x 11.8 x 11.8 in |
| Weight | 12.1 kg 26.7 lb | 5.6 kg 12.4 lbs | 8.2 kg 18 lb |
| Turntable Diameter | 23.5 cm 9.25 in | 19.3 cm 7.6 in | 18 cm (fits up to 8 horizontal dental arches) 7.1 in" |
| Maximum Part Height | 24.5 cm 9.64 in | 18.5 cm 7.28 in | 6.5 cm (~vertical dental arch) 2.56 in |
| Maximum Cure Chamber Temperature | 100 °C 212 °F | 80 °C 176 °F | N/A |
| Light Source | 48 multi-directional LEDs | 13 multi-directional LEDs | 56 multi-directional LEDs |
| LED Power | 150 W | 39 W | 200 W |
| LED Radiant | 50 W | 9.1 W | 36 W |
| LED Wavelength | 405 nm | 405 nm | 405 nm |
| Power Requirements | Input (NA) 100 - 120 V VAC, 50-60 Hz, 15 A Input (EU) 220 - 240 V VAC, 50-60 Hz, 8 A | 90–240 V 6.0 A 50/60 Hz 144 W | 100 - 200 V 5.4 A, 50/60 Hz |
