Fast Model Resin

General Purpose, Engineering

Application

SLA

Post-Curing Optional

62 MPa

Ultimate Tensile Strength

2.67 GPa

Tensile Modulus

11 %

Elongation at Break

Printer

Form 4, Form 4B, Form 4L, Form 4BL

Resin Tank

Form 4 Resin Tank, Form 4L Resin Tank

Build Platform

Form 4 Build Platform, Form 4 Flex Build Platform, Form 4L Build Platform, Form 4L Flex Build Platform

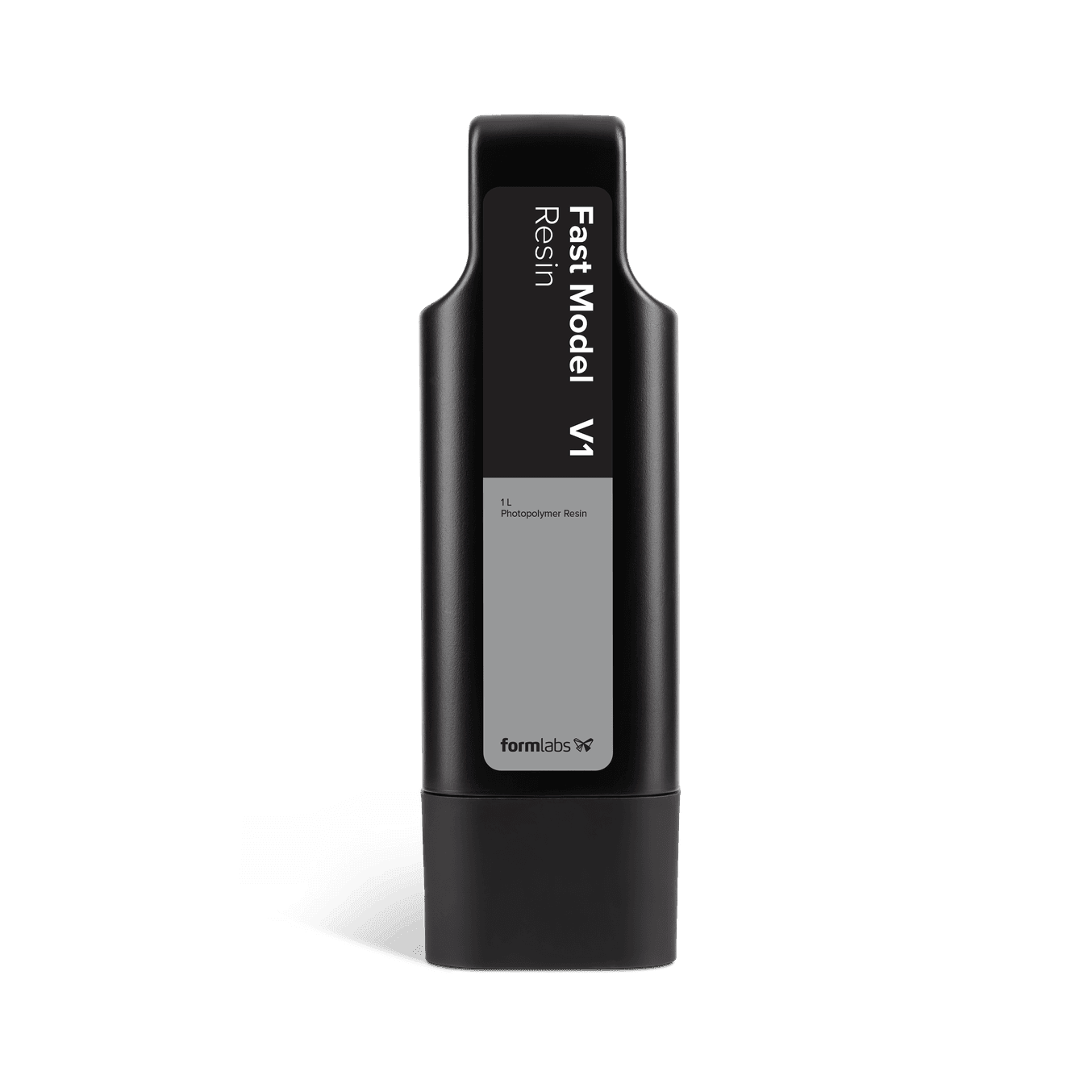

Fast Model Resin

Select Printer Series and Resin Volume

Resin Discount
Find a Reseller
Bulk order quantity (L)Discount %
10%
3015%
6020%
12025%
24030%
1,00035%
2,00040%
3,00045%
Fast Model Resin is Formlabs’ fastest resin, capable of printing at speeds of over 100 mm per hour. Print dental models in minutes or large prototypes in less than two hours.

Fast Model Resin is the next generation of Draft Resin that leverages the Form 4 Series to print three times faster, while offering improved mechanical properties.

Formlabs Materials for Dental Models

Material
Key Feature
Speed
Versatility
Accuracy
Recommended Application
Clear aligner models, orthodontic models
Diagnostic models, Fit models
Restorative models, Implant models

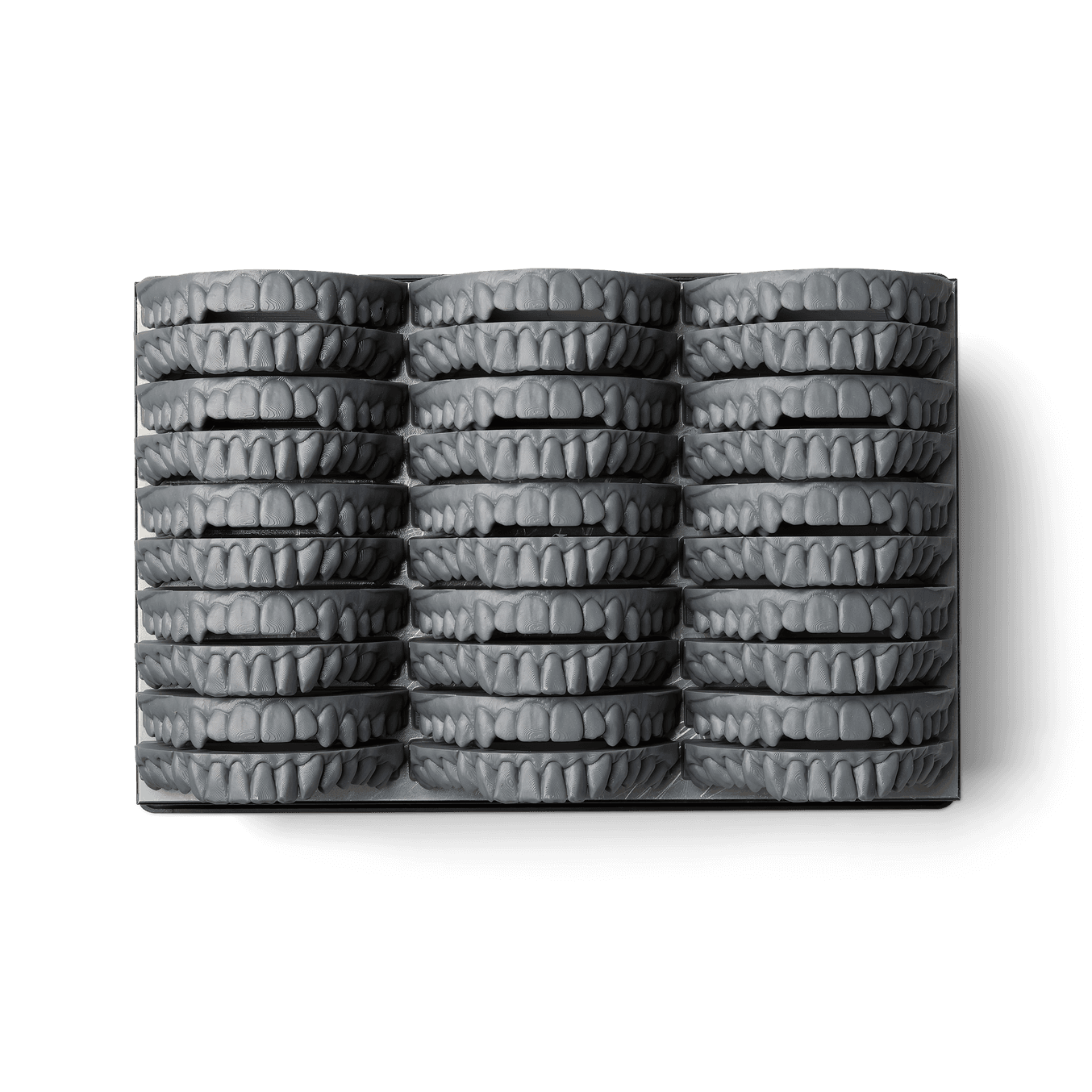

Dental model 3D printed in Fast Model Resin

Why Choose Fast Model Resin?

Fast Model Resin is Formlabs’ fastest dental 3D printing resin, capable of printing at speeds of 100 mm per hour.


Print a Model a Minute

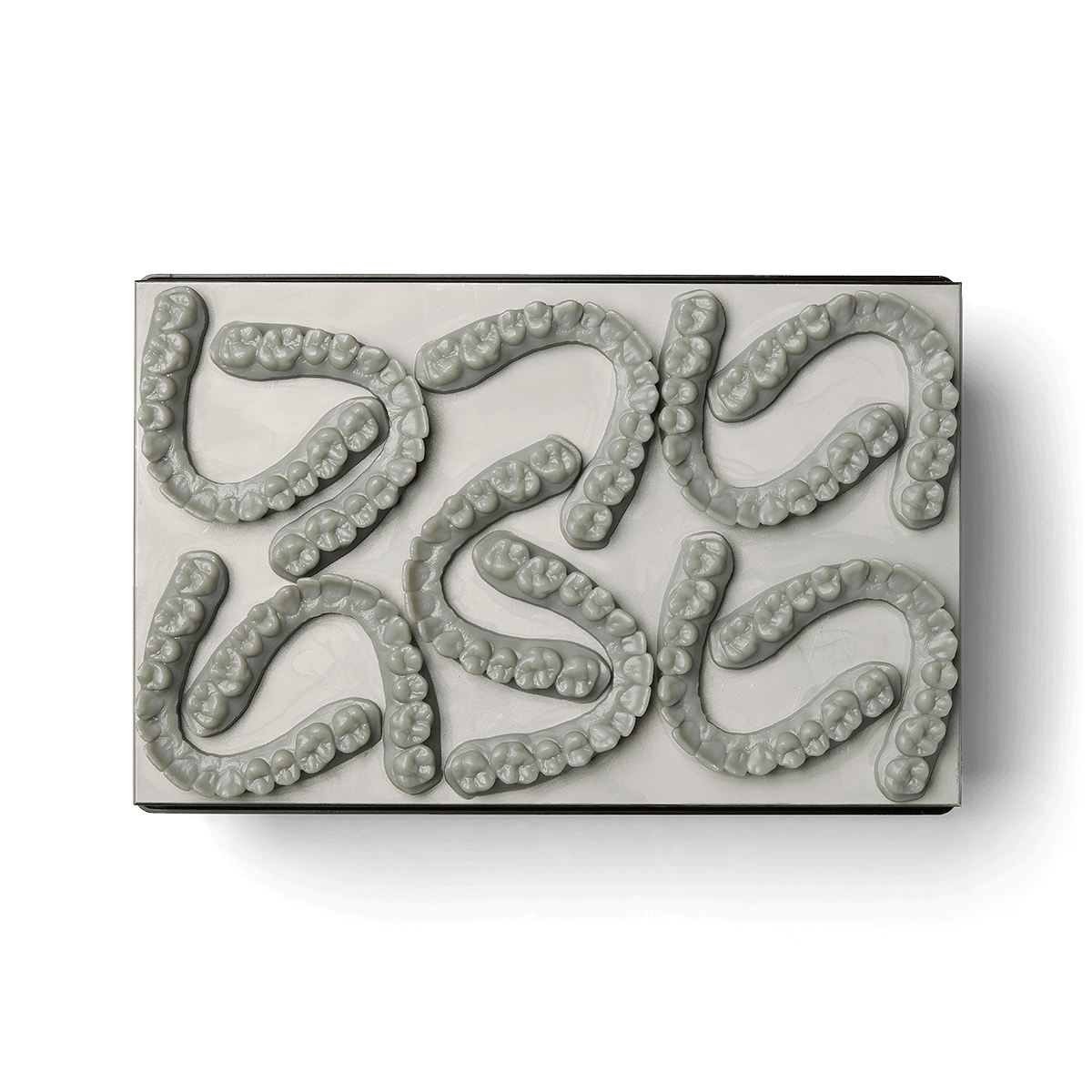

Print 11 arches in one job in just 9 minutes.


Fast Post-Processing

Post-process parts quickly with a 5-minute wash and 5-minute room temperature post-cure.


Unmatched Reliability

Print confidently with an end-to-end product ecosystem rigorously validated for continuous uptime and reliability.


Accurate Orthodontic Models

Consistently create orthodontic models with 95% of printed surface area within 100 μm of the digital model.

What’s New With Fast Model Resin?

Fast Model Resin is the next generation of Draft Resin, formulated to leverage the new Form 4 ecosystem. Compared to Draft Resin V2, Fast Model Resin is:

Faster — formulated to take advantage of the new Form 4 ecosystem to print three times faster
Stronger and stiffer — 45% higher strength and modulus
More opaque and matte in color

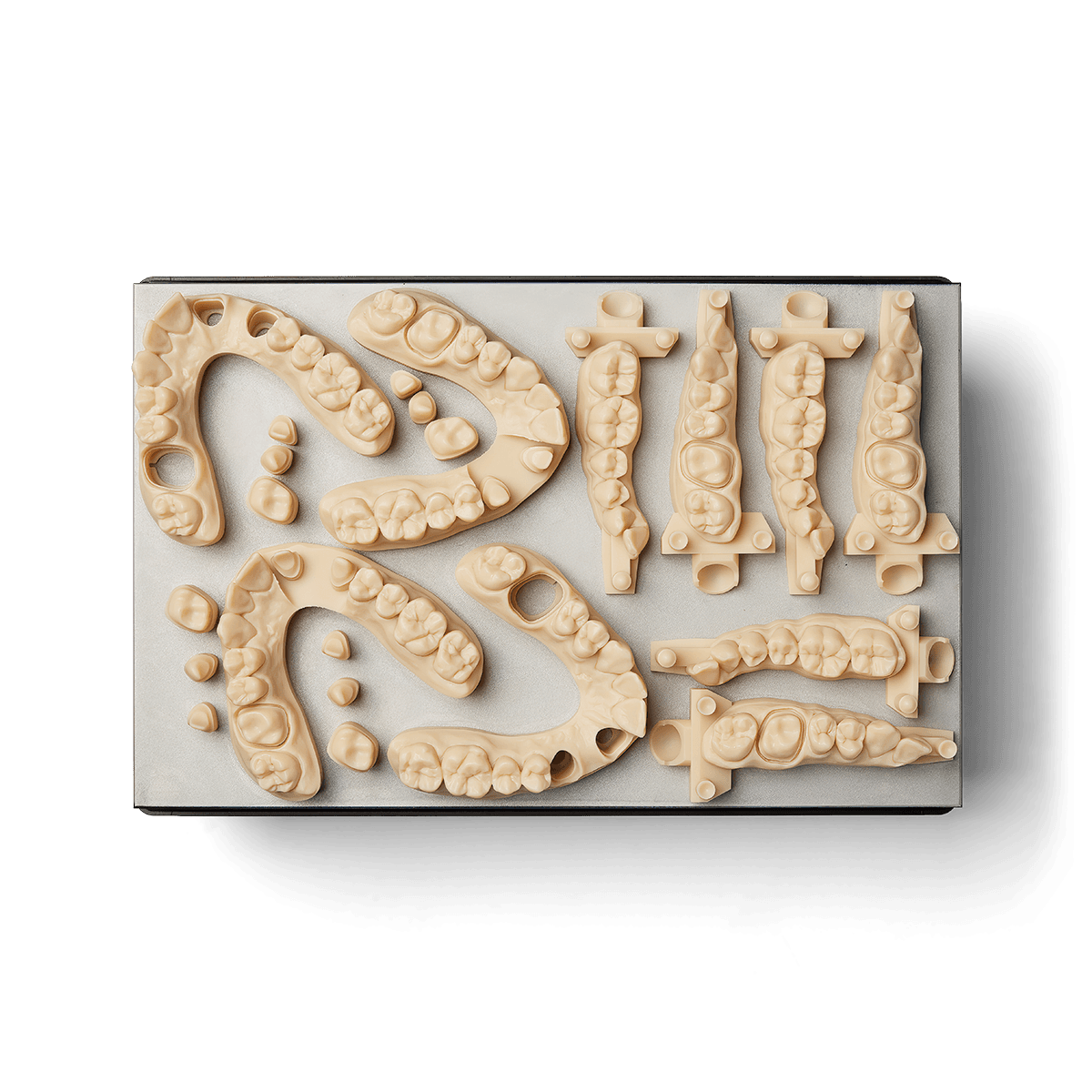

Dental 3D printed parts in Formlabs Fast Model Resin

Post-Processing

Wash Settings

Duration

5 minutes

Notes

Start with a 5-minute wash and modify the wash time based on your part geometry and solvent purity.

Cure Settings

Default

5 minutes at room temperature

Enhanced

15 minutes at 60 °C

Notes

Fast Model Resin can either be used with either a 5-minute room temperature cure for faster turnarounds or with a 15-minute cure at 60 °C for improved strength, stiffness, and heat deflection temperature.
