Production-Ready Solutions That Scale

Empower your dental lab with the most precise and reliable dental 3D printing solution. Cost-effectively produce parts you'll be proud to deliver for a wide range of indications.

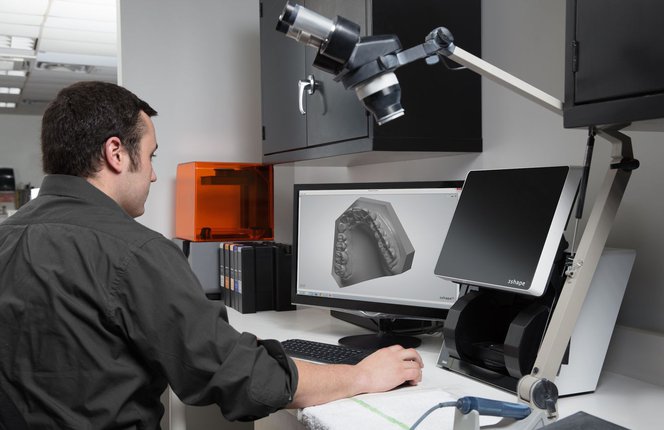

3D Printing for Dental Labs

youtube play iconWatch the video

A Simple and Consistent Workflow

From print preparation software to monitoring and automated post-processing tools, Formlabs offers a hassle-free and clean workflow that fits any dental lab.



1. Scan

Receive patient anatomy digitally from dentists or scan impressions with a lab scanner.

2. Design

Import scan data into dental CAD software to design models, restorations, and other indications. Formlabs 3D printers offer direct integration with 3Shape and ExoCAD, and work with all dental CAD software tools that support STL export.

3. Print

Import the designed CAD files into PreForm print preparation software for print setup and send them easily to a Formlabs printer. Swapping materials and resin tanks for different applications on the Form 3B only takes a few seconds. You can start print jobs on the go with Remote Print and never need to worry about running out of material thanks to the automatic resin cartridge system.


4. Prepare

Wash, dry, and post-cure printed parts. Our automated solutions, Form Wash and Form Cure, make post-processing simple and allow you to save labor, time and cost.

Consistently Accurate Parts That Meet the Demands of Dental

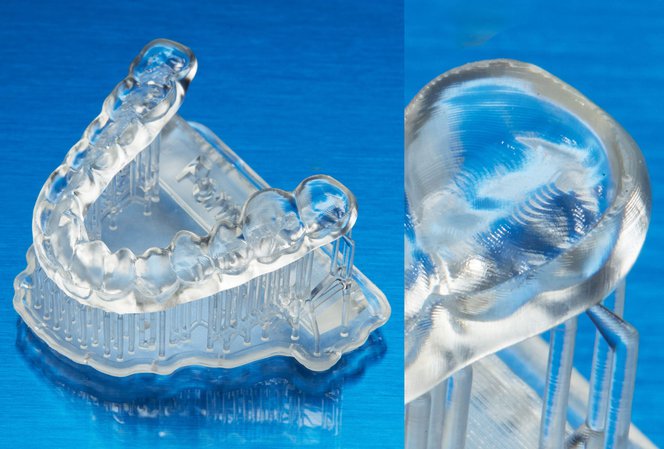

Next Generation Low-Force Stereolithography

Our next generation Low-Force Stereolithography technology reduces the strain created on a part when peeling it from the resin tank between layers, producing parts with incredible surface quality and clarity. Light-touch supports make removing support structures easy and reduce time spent in post-processing.

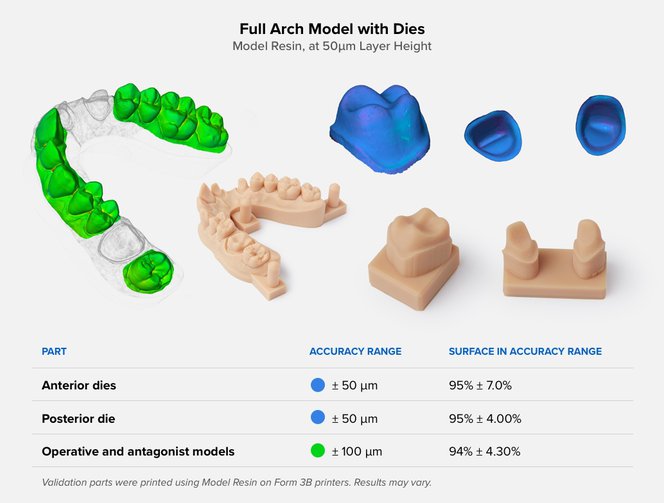

Accuracy

Thanks to the precise Low-Force Stereolithography print process, the Form 3B produces high accuracy removable die models, surgical guides, splint, and other indications, delivering the same precision as large-format dental 3D printers that cost $35,000 or more.

See and feel Formlabs quality firsthand: Pick a material and we'll ship you a free sample part 3D printed on the Form 3B to evaluate.

Request a Sample Part

Crisp margins, tight die and restoration fit, and smooth surface finish helps you guarantee high-quality final products.

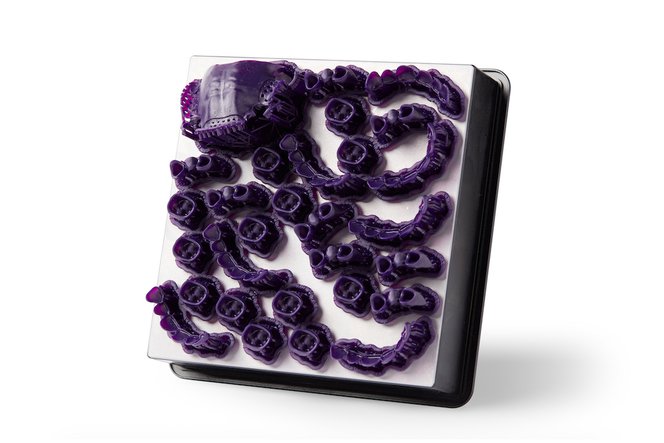

Larger Build Volume, Lower Cost

 The Form 3B’s large build platform and automatic resin dispensing cartridges allow for more parts per print job. Dental labs can expect to see 55% less labor and costs compared to competitive 3D printers.

Quadrant models for fixed prosthetics

Model Resin at 50 μm

Up to 8 quad model kits (upper, lower, and die) per print in ~9.5 h for $2-4 a kit



Full arch models for fixed prosthetics

Model Resin at 50 μm

Up to 2 full arch model kits (upper, lower, and die) per print in ~9.5 h for $6-8 a kit



Patterns for fixed and removable prosthetics

Castable Wax Resin at 50 μm

Up to 100 crowns andaor copings per print in ~9.5 h for $0.25-0.50 a unit

Up to 7 RPD frames per print in ~7.5 h for $3-5 a part




Large Diagnostic Models

White resin at 100μm

Up to 2 model sets (upper and lower) per print in ~5 h for $6-9 a set



Diagnostic Models

Model Resin at 100 μm

Up to 2 model sets (upper and lower) per print in ~5 h for $6-9 a set



Surgical guides

Dental SG Resin at 100 μm

Up to 29 quadrant surgical guides per print in ~5 h for $2-$4 a part

Up to 8 full arch surgical guides per print in ~4 h for $3-$6 a part


Occlusal splints

Dental LT Clear Resin at 100 μm

Up to 8 splints per print in ~2.5 h for $4-$6 a part



Denture teeth

Denture Teeth Resin at 50 μm

Up to 8 denture teeth sets per print in ~5.5 h for $3-$5 a part



Denture bases

Denture Base Resin at 50 μm

Up to 8 denture bases per print in ~9 h for $5-$7 a part



Built to Scale With Your Needs

Add new 3D printers and post-processing units to your fleet as the demand grows without breaking the bank.



Online Dashboard

Our powerful, easy-to-use Dashboard interface allows anyone to effortlessly manage and monitor an entire fleet of printers from one place, with full, independent control over settings and materials.

See Dashboard

Software Included

No pesky licenses or annual fees. Install on as many systems as desired to work from anywhere.

Download PreForm

Trusted by Dental Industry Leaders

With 75+ support and service staff and 150+ engineers, Formlabs backs its products with the strongest team in 3D printing.



Resources for Dental Labs

Learn how digital dentistry is transforming dental workflows and how you can integrate 3D printing into your lab with our free resources.

Explore Resources for Labs

FORMLABS WEBINAR

Digitally Transforming your Dental Lab with Desktop 3D Printing

Learn with Lee Culp, CDT, as he walks through how and when to take advantage of in-lab 3D printing, covers the most impactful workflows, and talks in real terms on the positive effects that 3D printing is making on his business’s top and bottom lines.

Watch the Webinar Now

Premium Support From a Team of Dental Experts

Our Dental Service Plan (DSP) includes personalized onboarding training, proactive check-ins, and the best phone and email support in the industry.

Learn More About Dental Service Plan

Everything You Need to Control Your Digital Future

The Form 3B Complete Package includes all of the tools required to bring high-precision 3D printing into your dental lab.

Order Now Request a Sample Part
